Auto Winged sanitary napkin Machine with quick-pack machine
Ⅲ.main point
1. Adapt PLC control the whole machine, operate the machine by touch screen
2. the conveyor belt can absorb the product, when it is run high speed, it will not fly

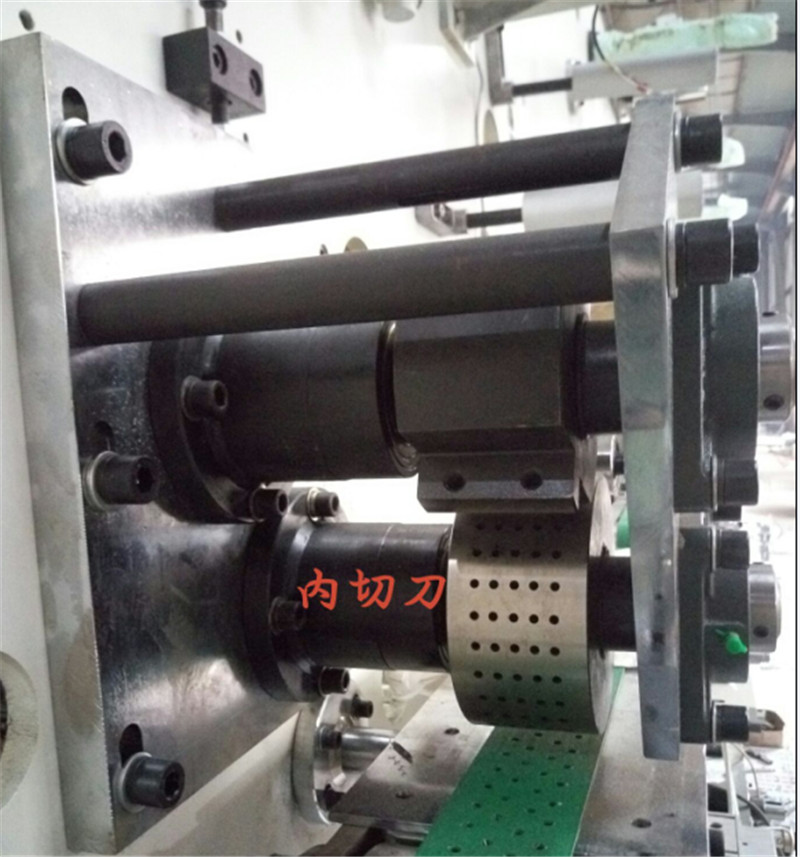

3. Cutter adapt pressure spring protect the knife from overload pressure
4. edge sealing ADL and cutter adapt the air cylinder protect the device
5. Main machine adapt frequency control the speed
6. main machine adapt bearing, timing belt, right angle gearbox, eruptional box drive
7. Cutter, ADL, edge sealing, easy quick package adapt carding strengthen by the drive
8. Universal coupling guarantee high speed drive is stable
9.Floor and wall made by 20mm steel plate, the base made by 120*120mm square steel pipe to guarantee the stable
